Capacity and separation equipment

Capacity equipment

«INGC», LLC produces different capacity equipment with the pressure up to 35MPa and the volume of up to 100m3.

Versions

1. Filling;
2. High pressure;
3. With internal partitions;
5. With mixing devices;
6. With inner coating (epoxy, rubber);
7. At the customer’s request, vessels can be made with external heat-sealing coating. Inside the units can be installed fixed internals: partitions, reinforcing rings, skirting boards, heat exchangers.


Materials

1. Carbon steel;
2. Corrosion-resisting steel;
3. Titan;
5. Special steel and alloys.


The vessels are developed and manufactured in accordance with GOST requirements, Federal norms and rules in the sphere of industrial safety.



Сертификат на Ёмкости и сепараторы.jpg
Purpose
The reservoir is to be used in processing units of oil, gas and other industry sectors for storage, implementation of operating procedures (surge control during the operation of a reciprocating compressor, separation and so on) of liquid and gaseous medium.


Description
A reservoir can be hollow, with one section or divided into several sections.

The reservoir is used in the open area or indoor.


Performance specifications
Technical conditions GOST Р 52630-2012, 54803-2011 ПБ 03-584-03
Operating pressure, MPa from 0,01 to 35 MPa
Operation temperature, оС from -25 to +200оС
Class of hazard (GOST 12.1.007-76) 3
Explosion hazard (GOST 30852.11-2002) Yes
Fire hazard (GOST 12.1.044-89) Yes
Capacity, m3Up to 100 m3

Reservoir standard form:
1 – Frame;
2, 4 – Outlet fittings;
3 – Partition;
5 – Inlet fitting;

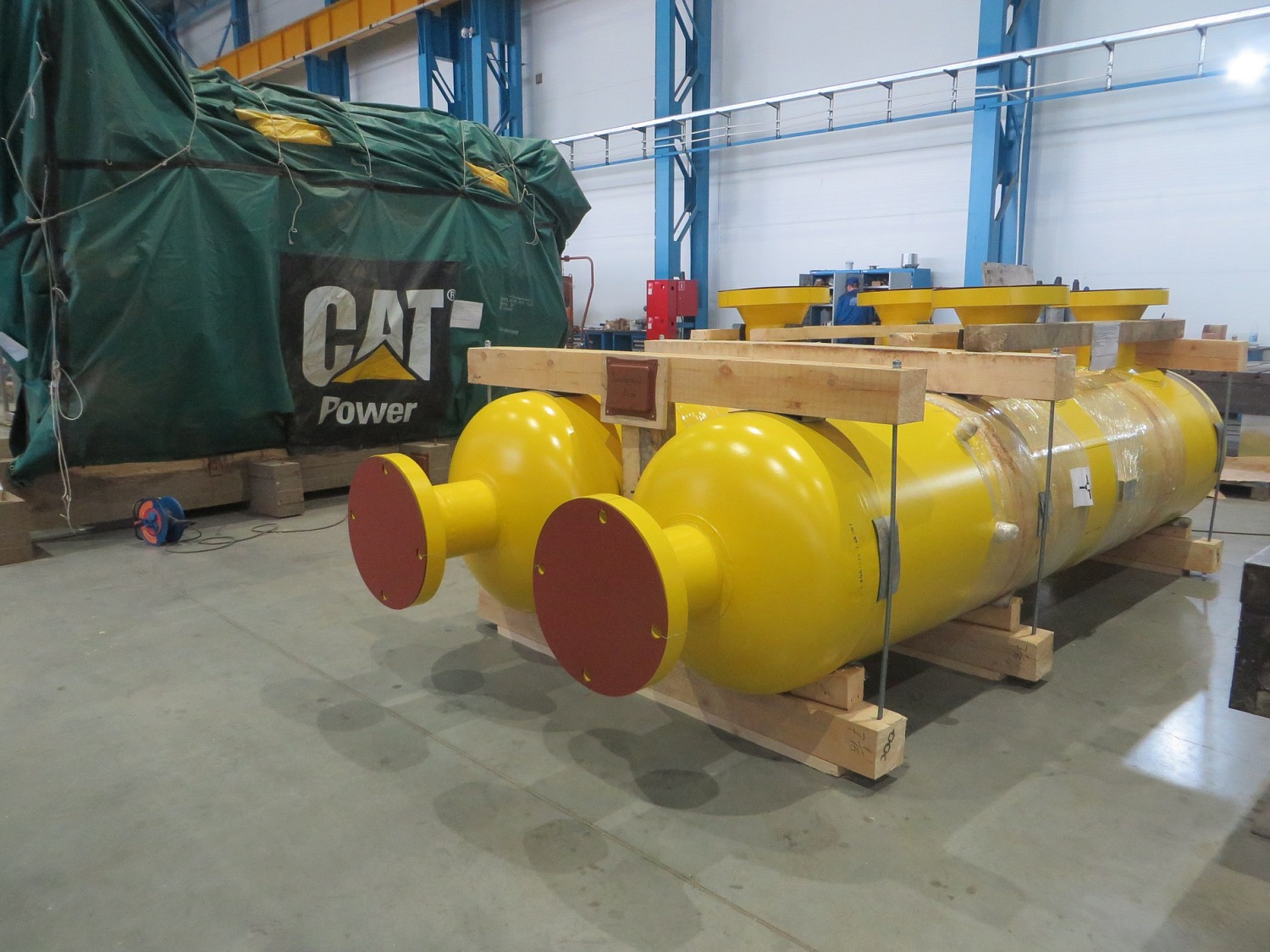

1_em_pre.jpg  2_em_pre.png 3_em_pre.jpg

Separation equipment

«INGC», LLC produces separation equipment for vertical and horizontal installation to be used in processing units of oil, gas and other industrial sectors for implementation of the operating procedure (separation and so on) of liquid and gaseous medium.

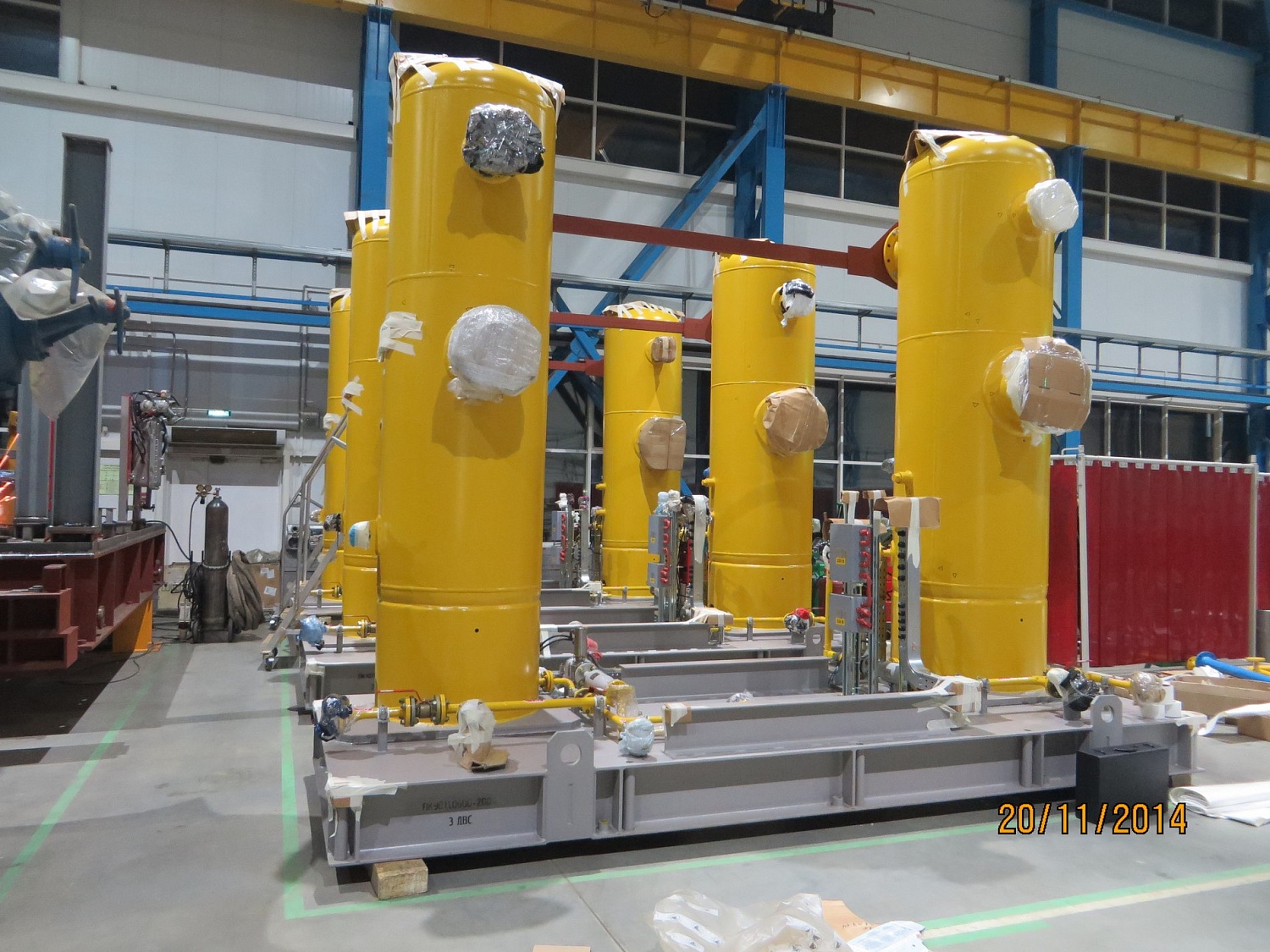

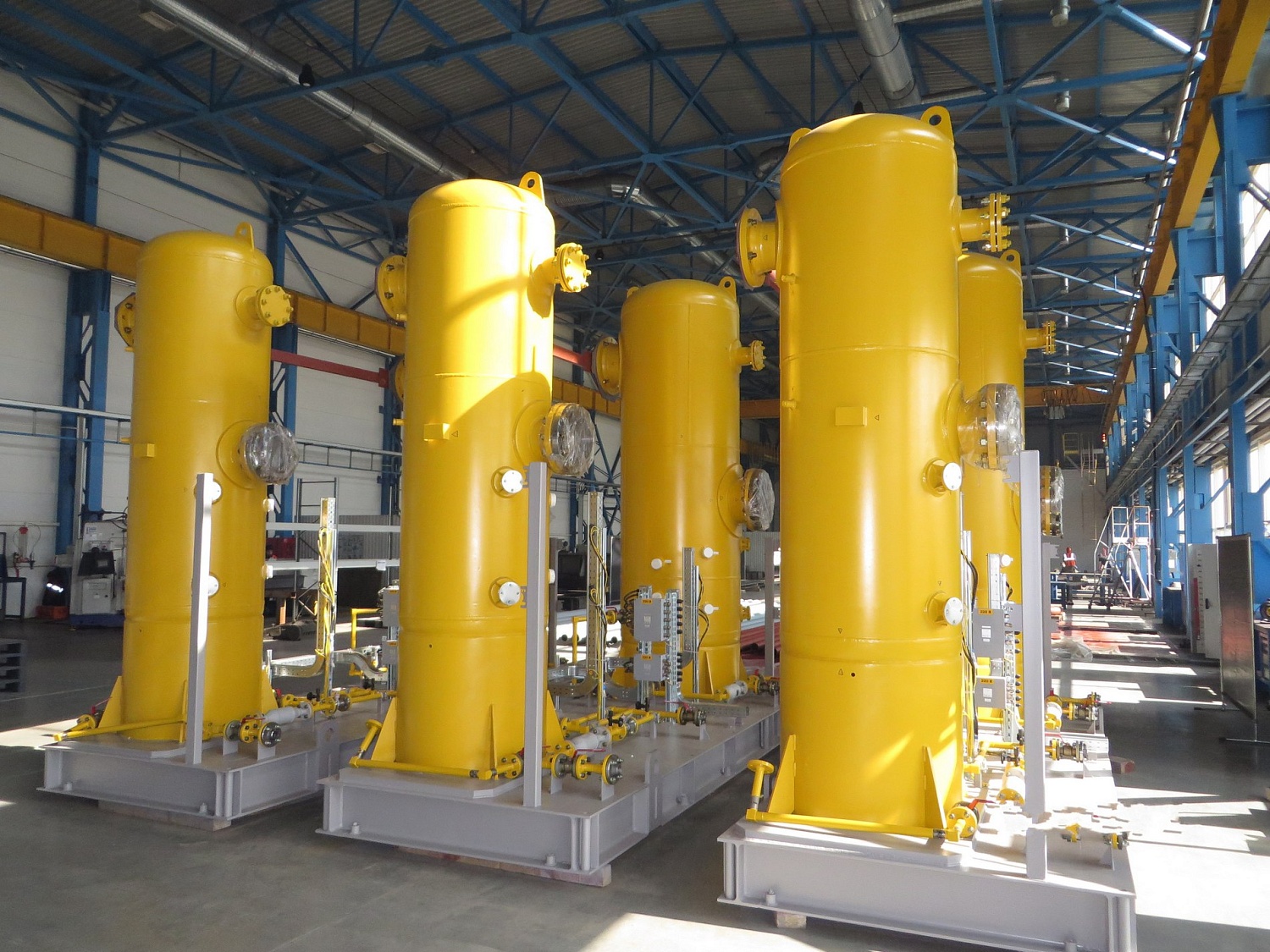

separators_pre.jpg             separators3_pre.JPG


Description

A separator represents a fully welded vertical cylindrical device, the frame of which is made of shell. The frame has elliptic bottoms in the upper and lower parts. The device is installed on the foundation welded to the lower elliptic bottom.


Performance specifications
Technical conditions GOST R 52630-2012, 54803-2011 ПБ 03-584-03
Operating spaceNatural gas
Operating pressure, MPa from 0,01 to 35 MPa
Operation temperature, оС from -25 to +200оС
MediumNatural gas
Class of hazard (GOST 12.1.007-76) 3
Explosion hazard (GOST 30852.11-2002) Yes
Fire hazard (GOST 12.1.044-89)Yes
Capacity, m30,025…10 m3

The Company productive capacity makes it possible to produce
Meshed gas boxes
  • Intended for final purification of natural gas and oil associated gas from liquid (condensate, hydrate growth inhibitor, water) in field units preparing gas for transportation, in underground storages, at gas and oil processing plants.
  • Volume: up to 10,0 m3
Vertical centrifugal separators
  • Intended for purification of oil gas from dropping liquid in the collecting systems and oil preparation units at oil fields.
  • Volume: up to 10,0 m3

Separator standard form:

1 – Separating package;
2 – Frame;
3 – Outlet fitting;
4 – Inlet fitting;
5 – Connecting branches for level alarms;
6 – Holder;
7 – Condensate gutter.

1_sep_pre.jpg                                        2_sep_pre.png                                           3_sep_pre.jpg
